Nocpix LUMI H35R Thermal Monocular with 800m Laser Rangefinder

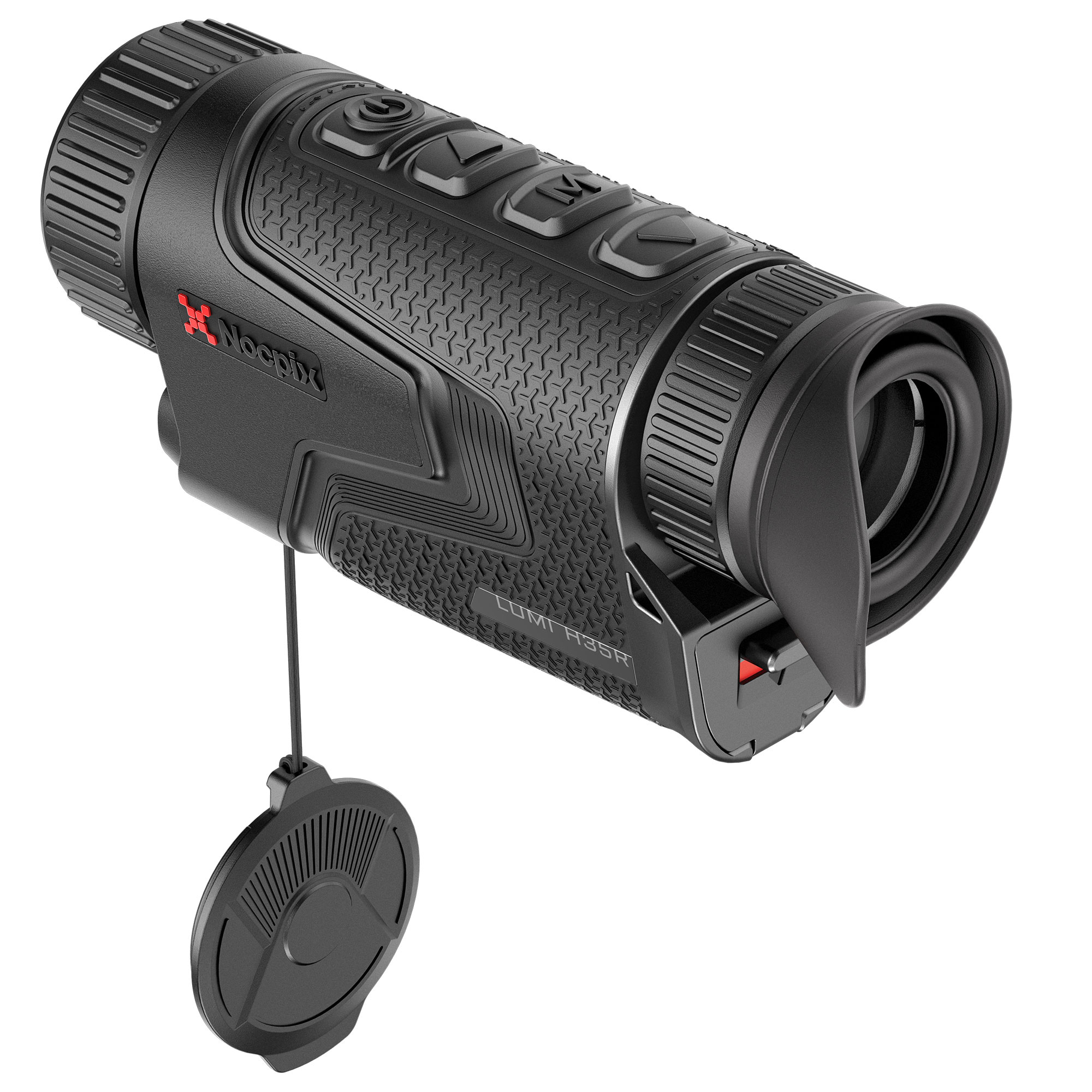

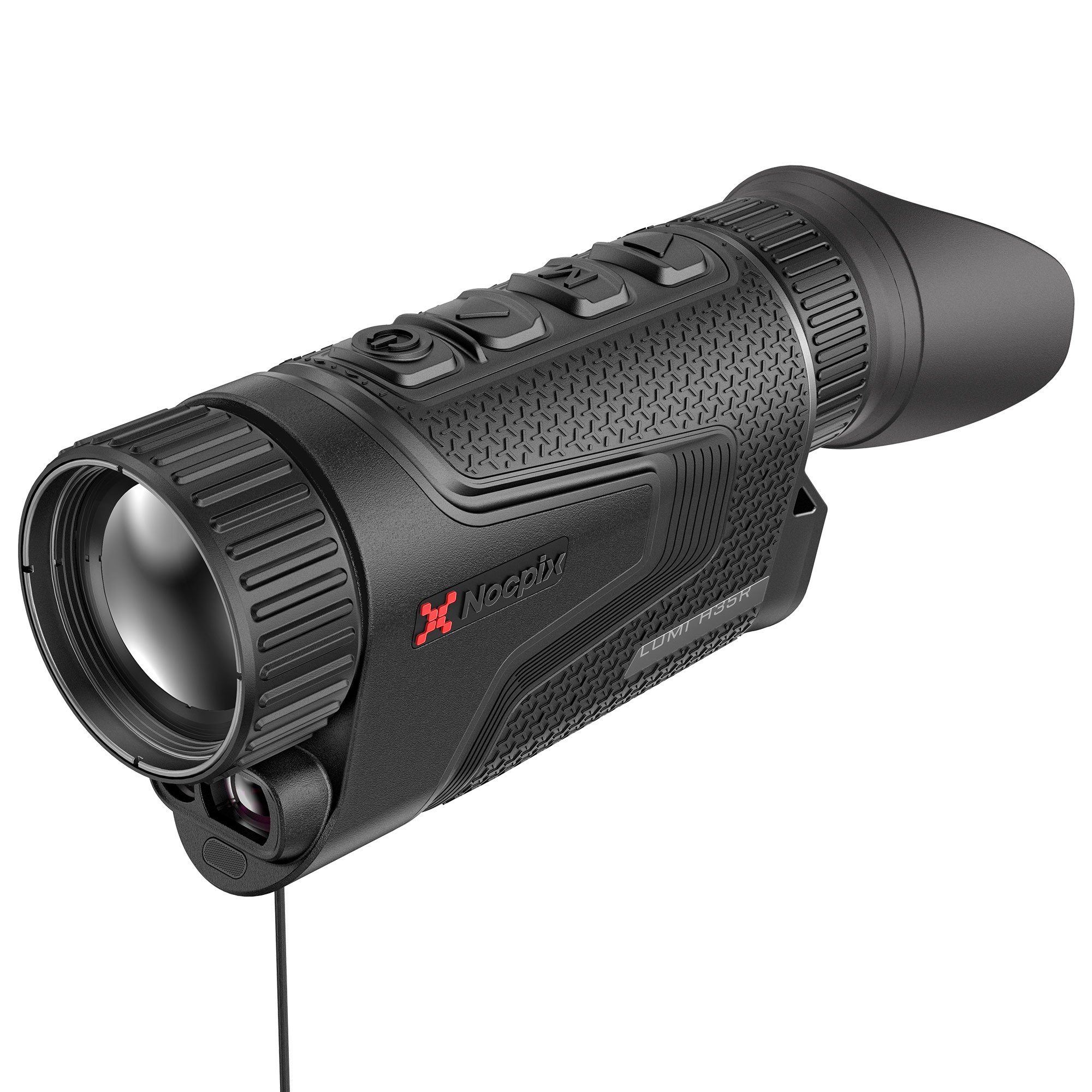

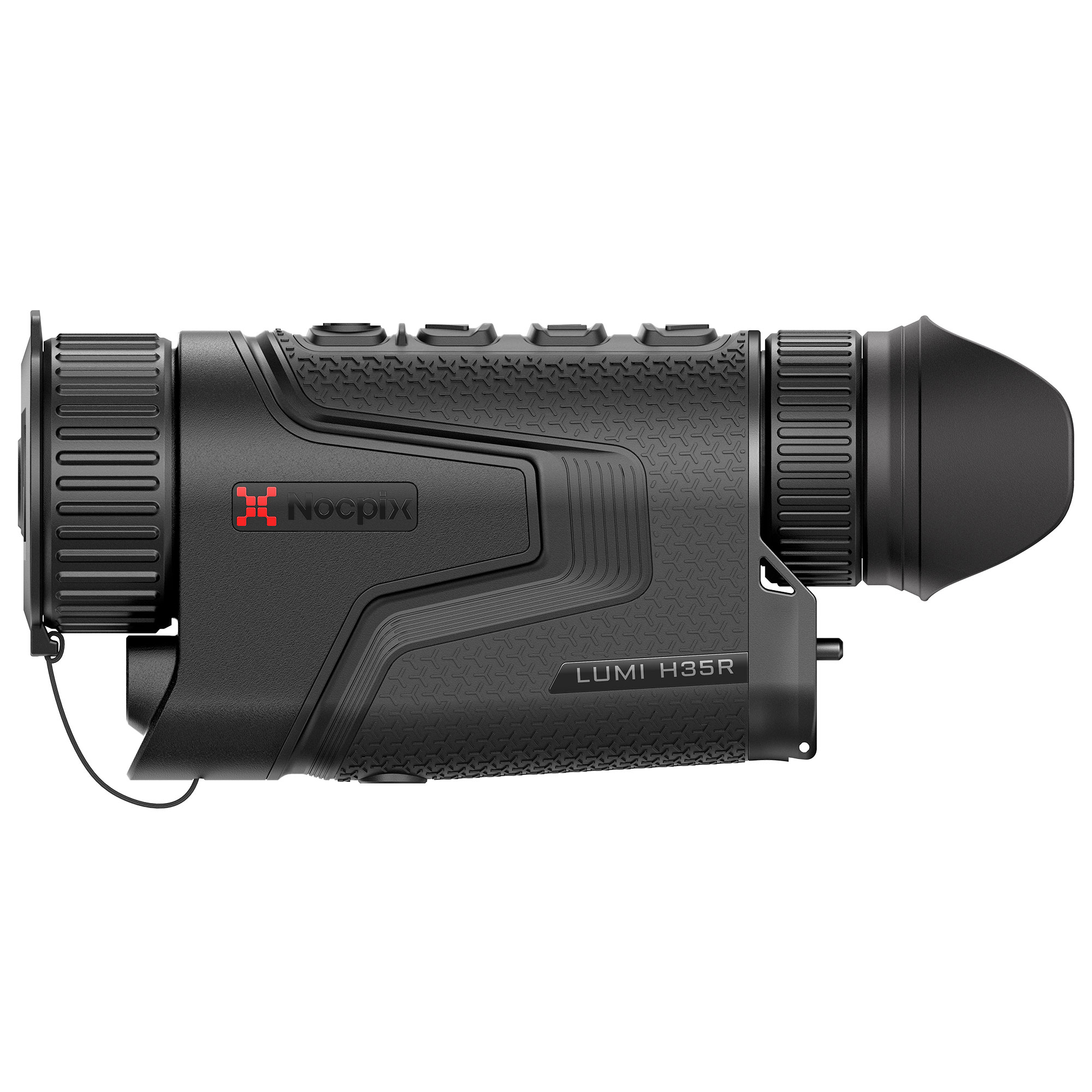

Nocpix LUMI H35R Thermal Monocular

The Nocpix LUMI H35R is a handheld thermal monocular with an integrated laser rangefinder. Its compact design makes it convenient to carry for wildlife observation, countryside outings and general outdoor use, with thermal imaging available in both daylight and darkness.

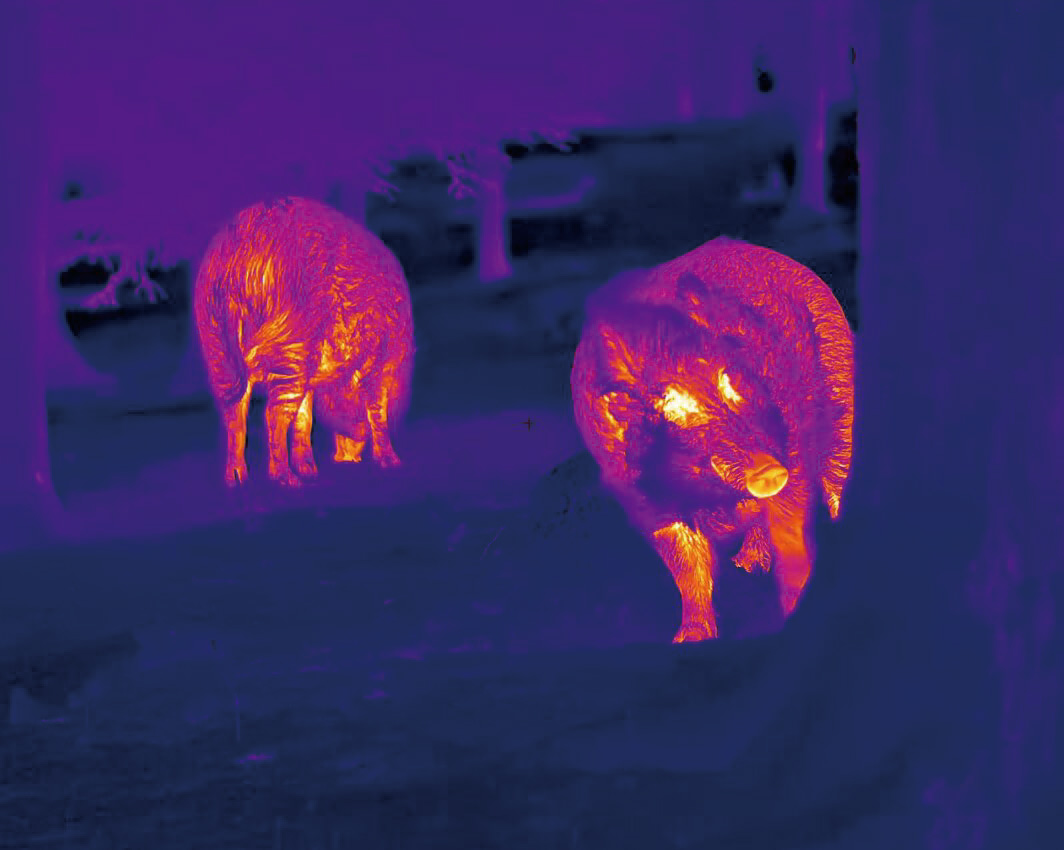

Detailed thermal viewing

A 640 × 512 detector with a 12μm pixel pitch works with the 35mm F0.9 objective lens to capture temperature differences across the scene. Thermal sensitivity of ≤18mK helps reveal subtle contrasts between warm subjects and their surroundings.

The 50Hz refresh rate supports smooth viewing as you scan. Magnification ranges from 2.5× to 20×, allowing you to move from an overview to a closer inspection of the displayed image.

At 100 metres, the field of view measures approximately 22m × 16m. This gives useful surrounding context when searching an area or following animal movement.

Integrated 800m laser rangefinder

The Nocpix LUMI H35R includes an integrated laser rangefinder capable of measuring distances up to 800 metres. Having thermal observation and distance measurement in one handheld device reduces the need to carry separate equipment.

The rangefinder provides distance information during observation, helping you assess the position of a subject within the landscape.

Comfortable handheld observation

Electronic image stabilisation helps steady the displayed image during handheld use. The AMOLED display has a resolution of 1024 × 768, while smooth digital zoom allows convenient adjustment of the view.

A choice of colour palettes, low-brightness settings and warm image tones lets you tailor the display to your preferences. These options are particularly useful when moving between the screen and the surrounding darkness.

The compact body is easy to carry between observation points and can be kept close at hand when an opportunity to view wildlife arises.

Save photographs, video and sound

Built-in photography, video and microphone functions allow you to record observations for later review. The 32GB internal storage provides space for saved images and clips without requiring a separate memory card.

Recording is useful for keeping a record of wildlife activity or sharing an observation after an outing.

Replaceable battery and outdoor protection

The monocular uses a replaceable rechargeable 18650 battery, allowing a charged spare to be carried for longer trips. This offers a practical way to manage power when spending time away from charging facilities.

An IP67 protection rating supports outdoor use, with resistance to dust and water. The portable design brings thermal viewing, rangefinding and recording together in one manageable unit.

Explore our Nocpix QUEST L35R thermal binocular for an alternative binocular viewing format, or visit the official Nocpix LUMI LRF page for further product information.
