Nocpix ACE H50R Thermal Scope with 1200m Laser Rangefinder

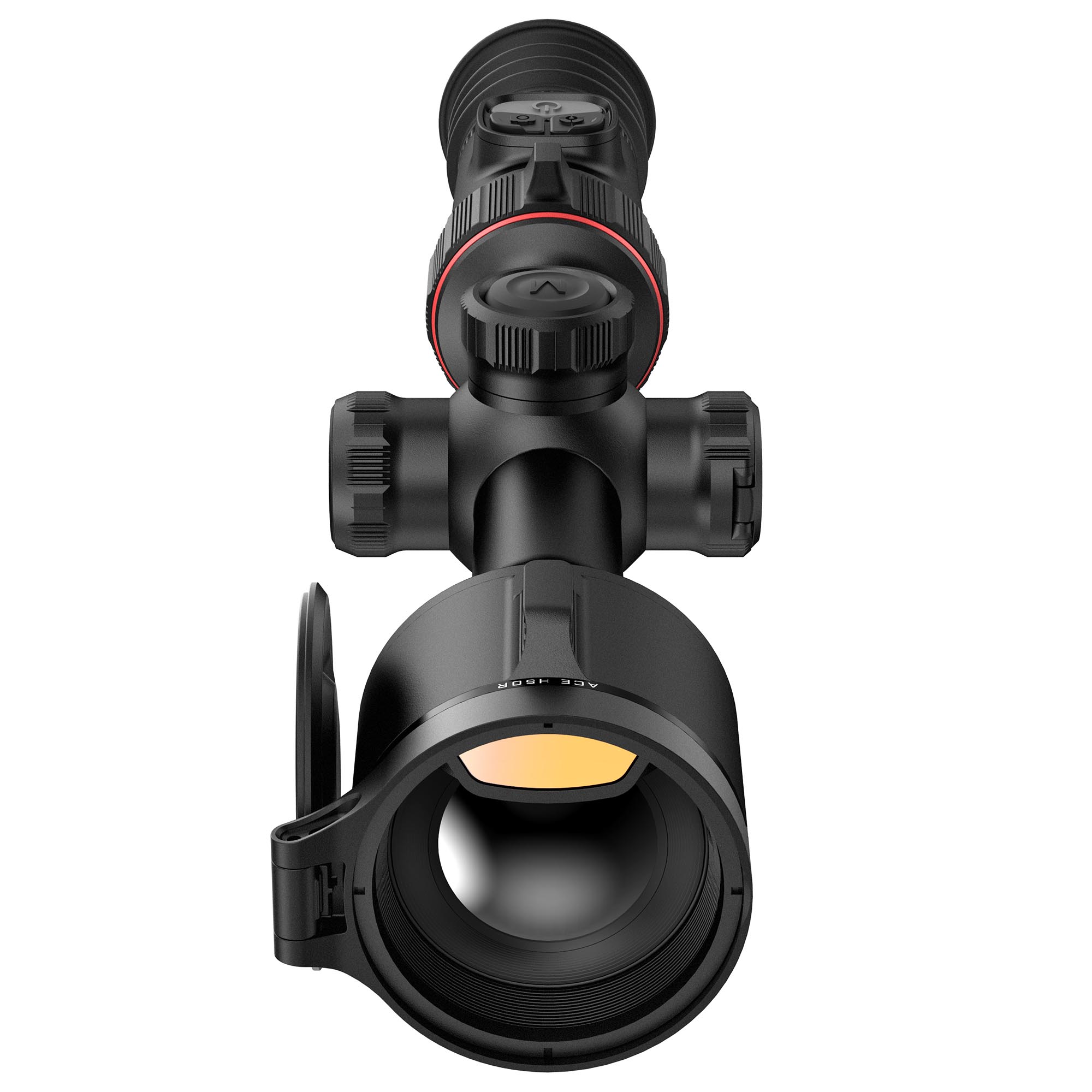

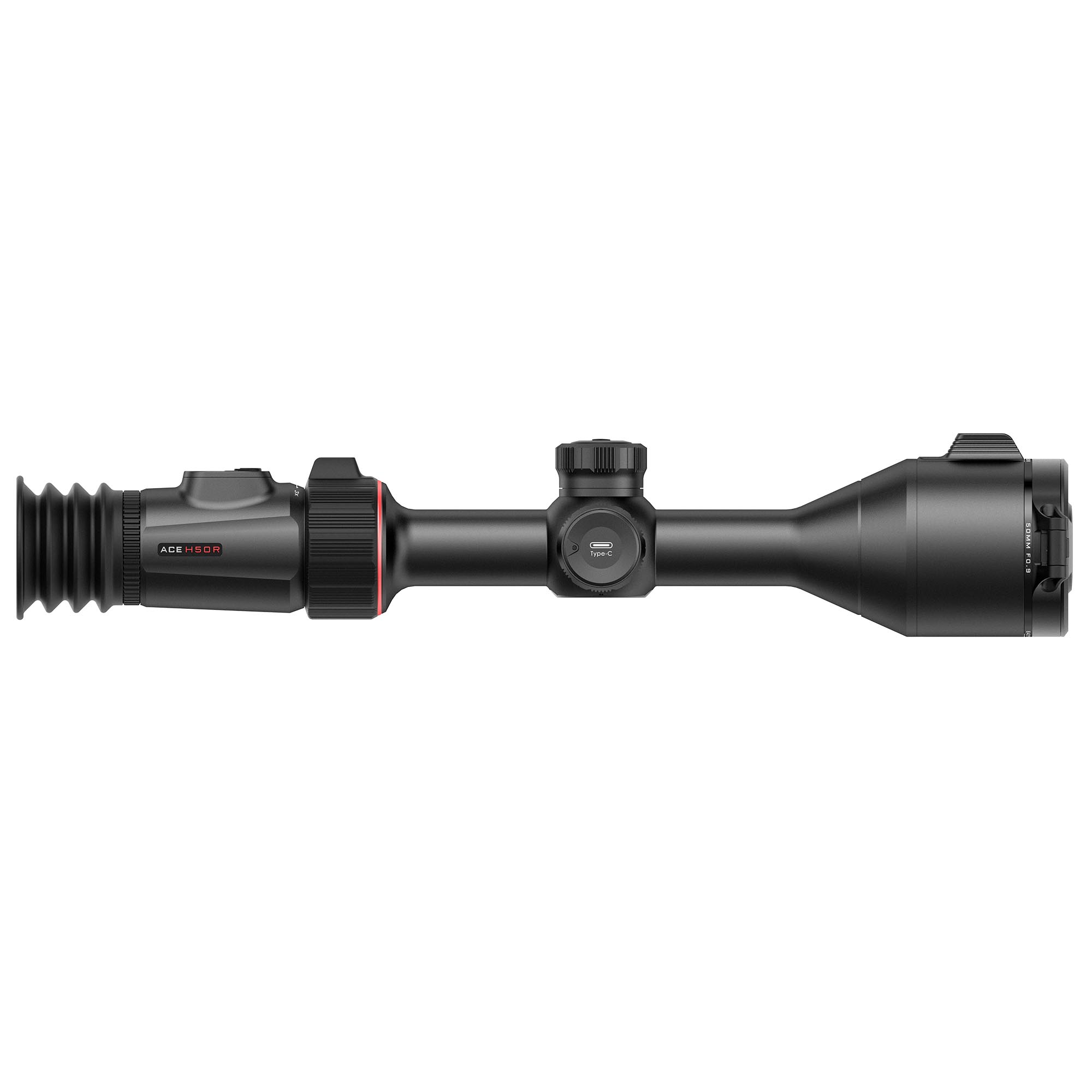

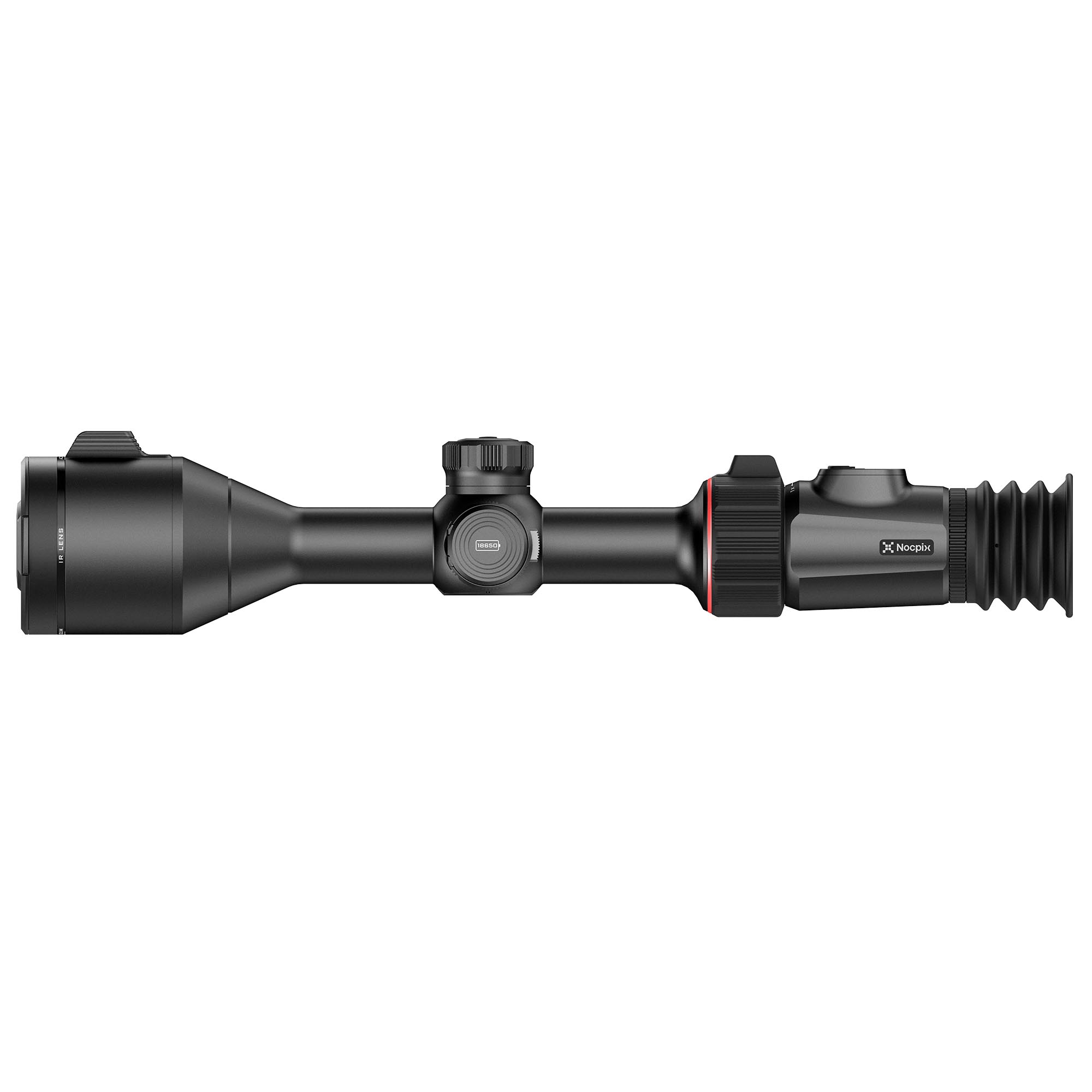

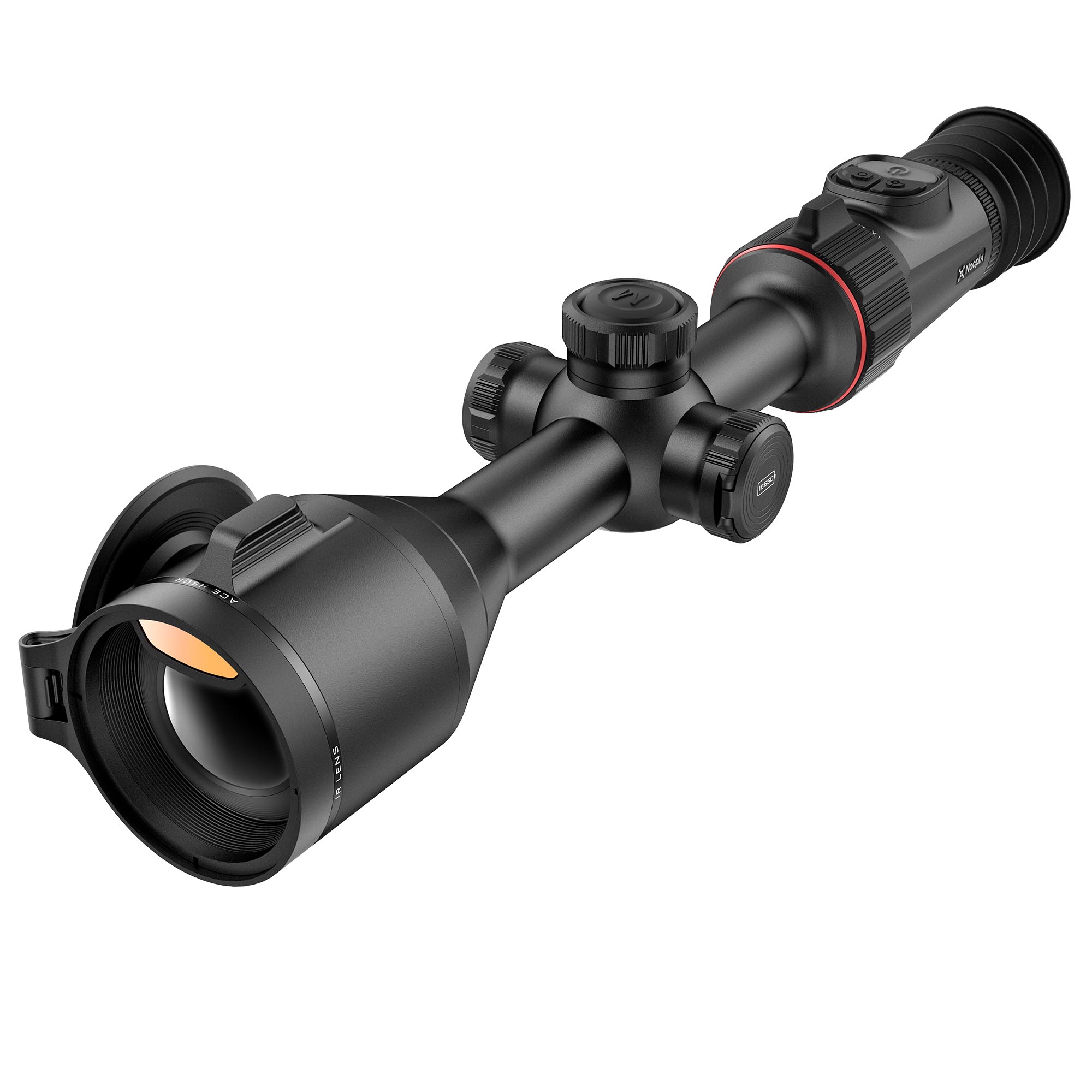

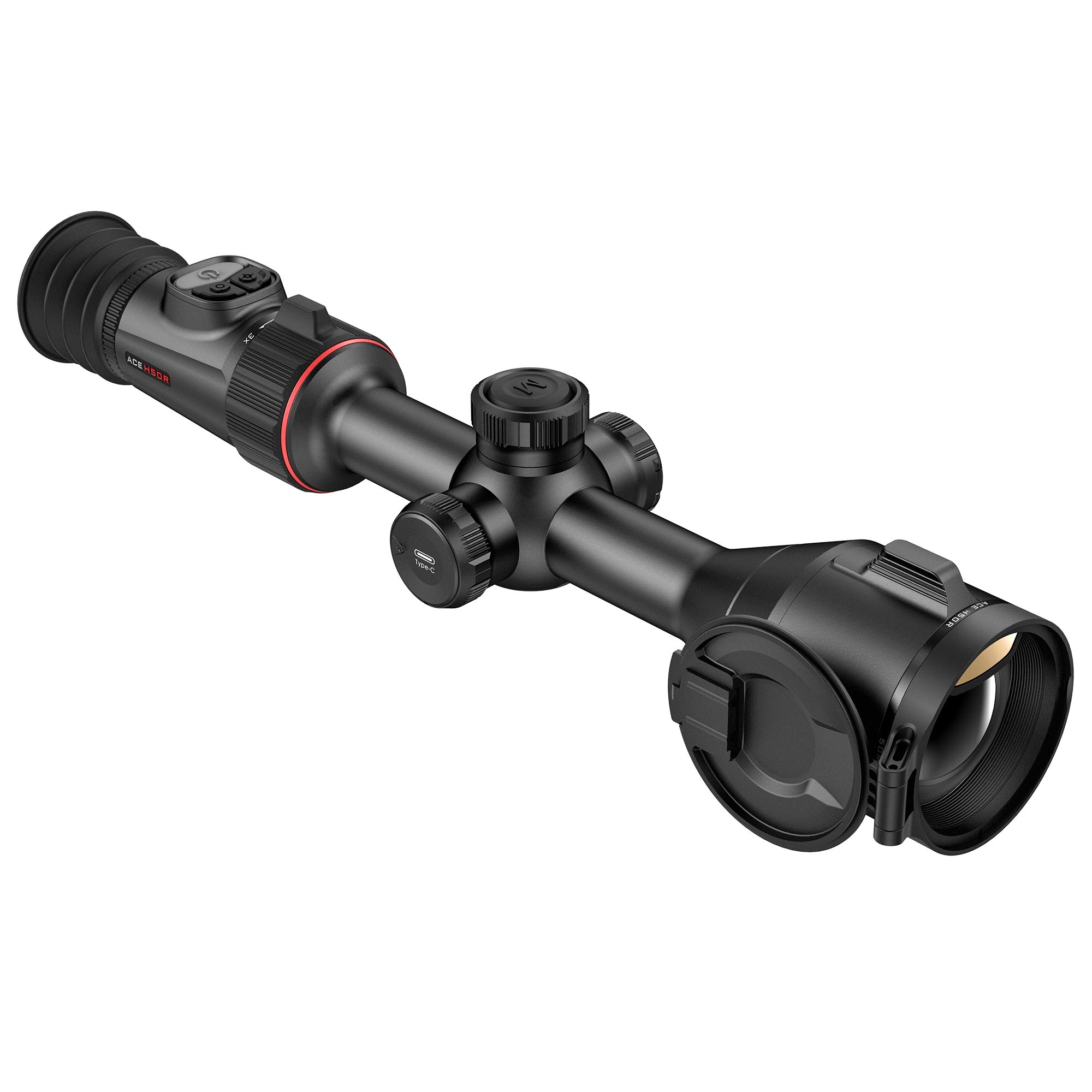

Nocpix ACE H50R Thermal Scope

The Nocpix ACE H50R is a thermal imaging riflescope combining a sensitive 640 × 512 detector, a 50mm objective lens and integrated laser ranging. Designed for observation in daylight and darkness, it detects thermal radiation without requiring an external infrared illuminator.

Sensitive 640 × 512 thermal imaging

The 12μm sensor offers thermal sensitivity of ≤15mK, helping reveal small temperature differences between subjects and their surroundings. A 60Hz refresh rate supports fluid viewing when observing movement or scanning a scene.

The 50mm F0.9 lens works with the detector to provide a stated detection range of up to 2,600 metres. This describes detecting a heat source under specified conditions; identifying an animal or recognising fine detail requires a suitable distance and clear viewing conditions.

The field of view measures 15.4m × 12.3m at 100m, providing surrounding context while observing a subject.

AMOLED display and ocular zoom

The Vision+ viewing system features a 1.03-inch AMOLED display with 2560 × 2560 resolution. This presents the thermal image on a large, detailed screen through the eyepiece.

The scope offers a stated magnification range of 3–24×, alongside adjustable ocular zoom. Eye relief of 50mm and an adjustable dioptre help accommodate different users.

Reality+ image processing enhances contrast and detail, while picture-in-picture provides a magnified inset alongside the main view.

Integrated 1200m laser rangefinder

The Nocpix ACE H50R includes a built-in laser rangefinder capable of measuring distances up to 1,200 metres. It provides distance information directly through the scope, reducing the need for a separate handheld device.

A ballistic calculation feature is also included. The rangefinder is integrated into the scope’s design to keep the overall arrangement compact.

Recording and connected features

Onboard photography and video recording allow you to save observations for later review. Recoil-activated video provides an automatic recording option, and the Gallery function supports playback on the device.

Built-in Wi-Fi enables connection with the Nocpix app. Additional features include a compass and motion sensor, bringing useful information and connectivity together in one unit.

Dual-battery power and outdoor construction

A built-in 4000mAh battery works alongside a replaceable 18650 battery, providing flexible power management during extended outings. The replaceable battery allows a charged spare to be carried when needed.

The aluminium-alloy body and IP67 protection support outdoor use. Convenient focusing controls and an accessible charging cover help make everyday handling straightforward.

Browse our thermal scopes and thermal imaging scopes to compare models, or explore the official Nocpix ACE range for further product information.
