Description

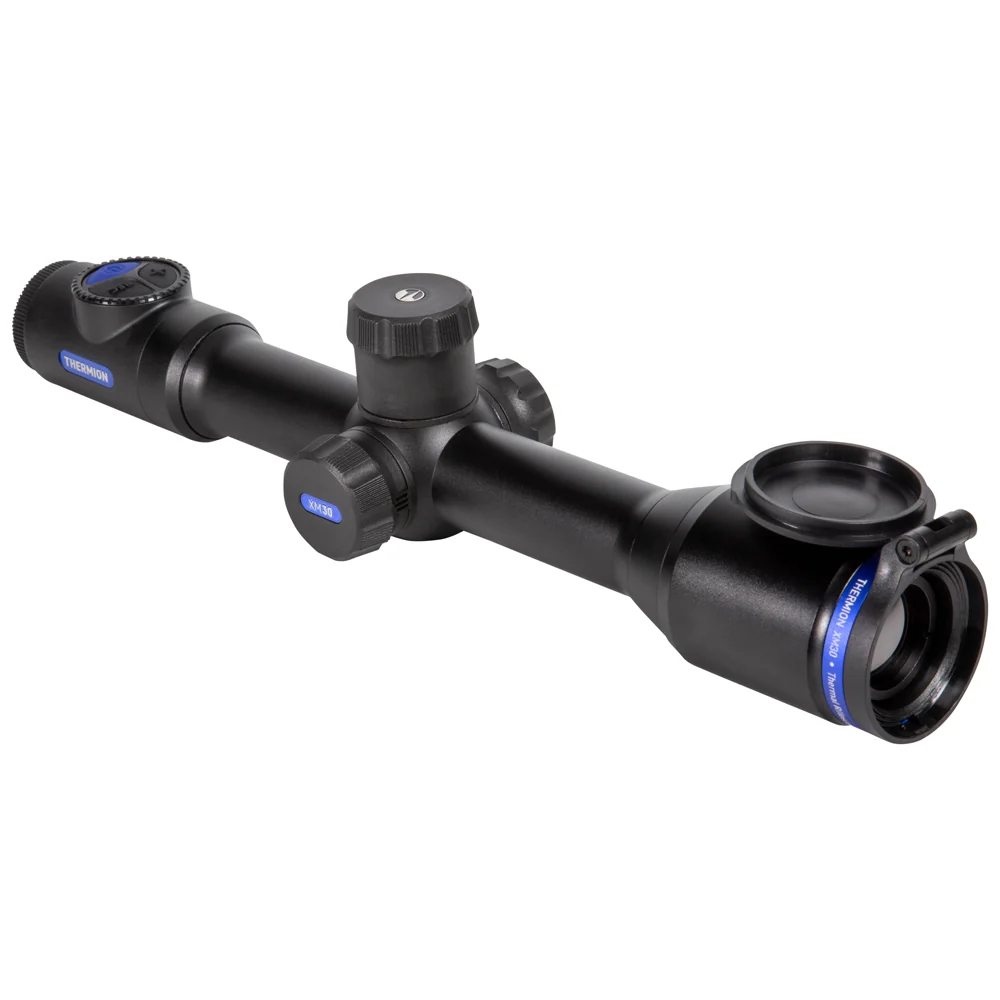

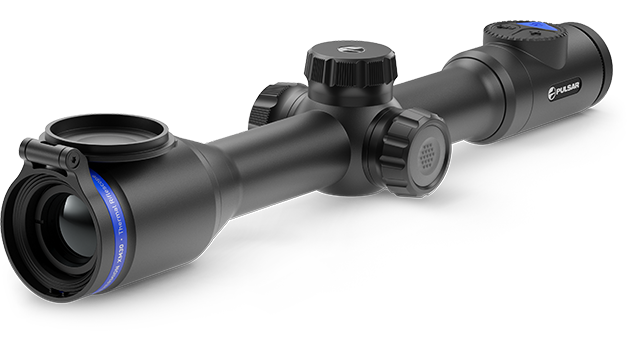

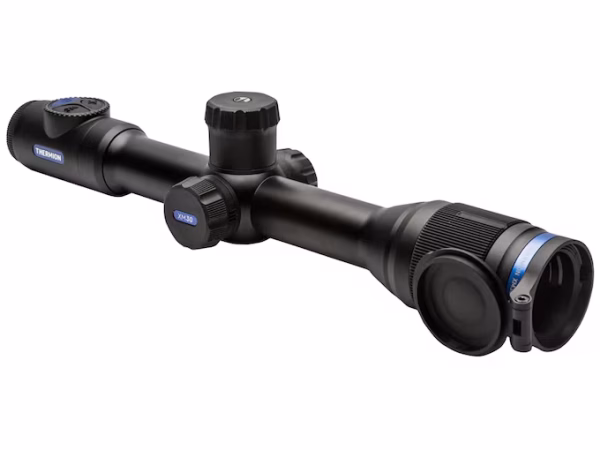

The Pulsar Thermion XM30 combines a thermal imaging sensor with a traditional riflescope profile. Its 320×240 sensor detects differences in heat, presenting the image on a 1024×768 AMOLED display for viewing in daylight or darkness.

Built-in recording lets you save observations, while Wi-Fi connectivity provides a connection to compatible mobile devices.

Pulsar Thermion XM30 Features

• 320×240 thermal sensor with 12µm pixel pitch.
• 50Hz refresh rate.
• 30mm F/1.2 objective lens.
• 3.5–14x magnification.
• 1024×768 AMOLED display.
• Built-in photo and video recording.
• 16GB internal storage.
• Wi-Fi connectivity.
• Internal and removable rechargeable batteries.
• IPX7 waterproof rating.

Thermal Imaging by Day or Night

Thermal imaging displays temperature differences rather than relying on visible light. The XM30 can therefore produce an image in darkness without an infrared illuminator.

Image detail depends on the conditions and the temperature contrast between a subject and its surroundings. Rain, fog and other environmental factors can affect the view.

Display and Digital Magnification

The Pulsar Thermion XM30 provides 3.5x base magnification, with digital zoom extending the displayed magnification to 14x.

Digital zoom enlarges the sensor image; it does not increase the sensor’s native resolution. The AMOLED display presents the thermal image and device information within the eyepiece.

Save Photos and Video

An integrated recorder stores photographs and video in the device’s 16GB internal memory. This allows you to review observations later without attaching a separate recording unit.

Wi-Fi connectivity supports compatible Stream Vision functions. Check Pulsar’s guidance for the appropriate application and firmware for your device.

Rechargeable Power and Weather Protection

The dual-battery system combines an internal rechargeable battery with a removable battery pack. Pulsar specifies approximately seven hours of operation at 22°C with Wi-Fi switched off; actual runtime varies with temperature and use.

The IPX7 rating provides protection against temporary immersion under the specified test conditions. Keep the device clean and dry after use, and follow the manufacturer’s care instructions.

Manufacturer Information and Support

For the complete specifications, battery information and care guidance, consult the Pulsar Thermion XM30 manual.
