Nocpix Mate H38R Thermal Clip-On Attachment with Laser Rangefinder
£2,399.00 Inc VAT
The Nocpix Mate H38R adds thermal imaging to a compatible daytime scope. Featuring a 640 × 512 sensor, 38mm F1.0 lens and integrated 1,200m laser rangefinder, it combines a 60Hz refresh rate with a full-HD AMOLED display and onboard recording.
1 in stock (can be backordered)
Nocpix Mate H38R Thermal Clip-On Attachment

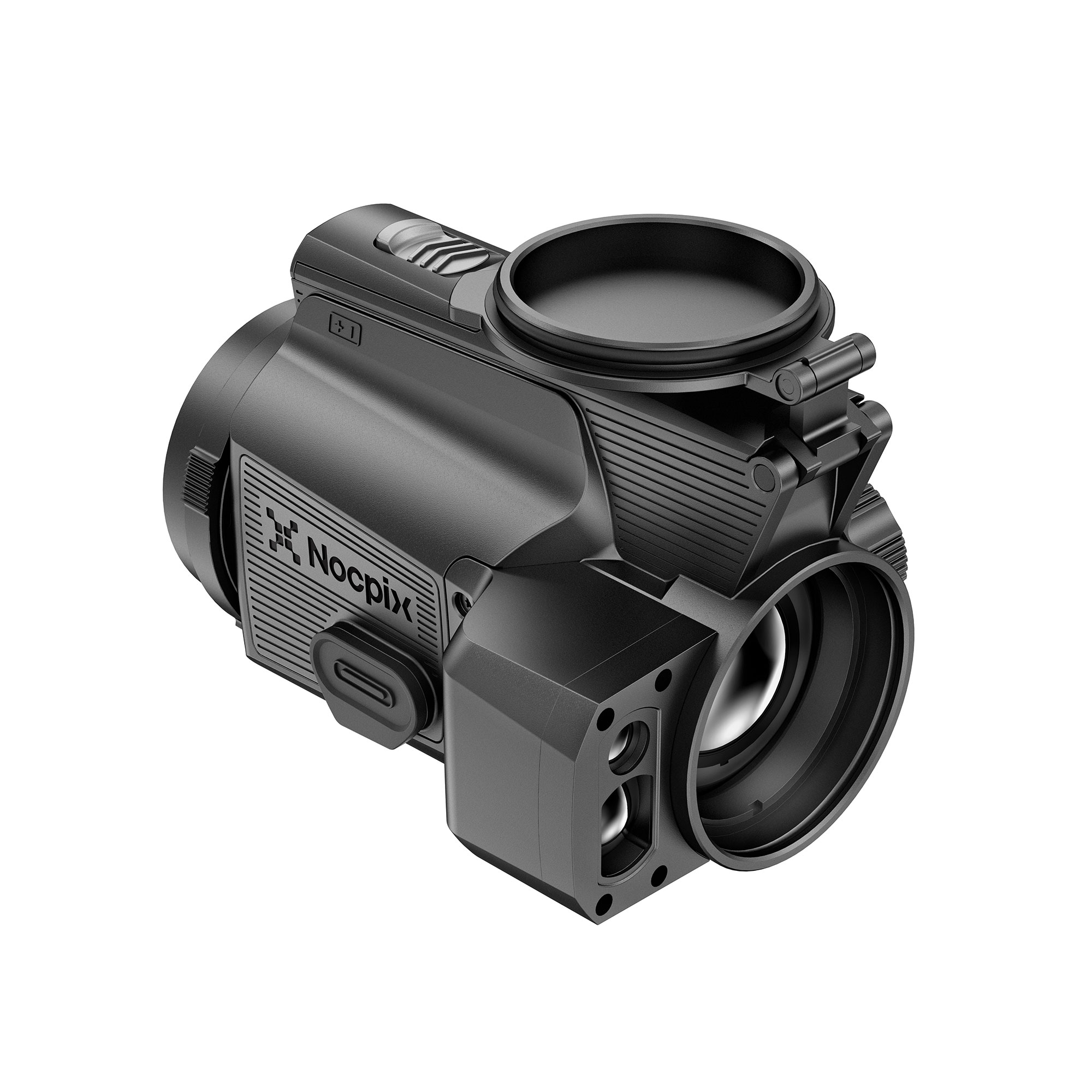

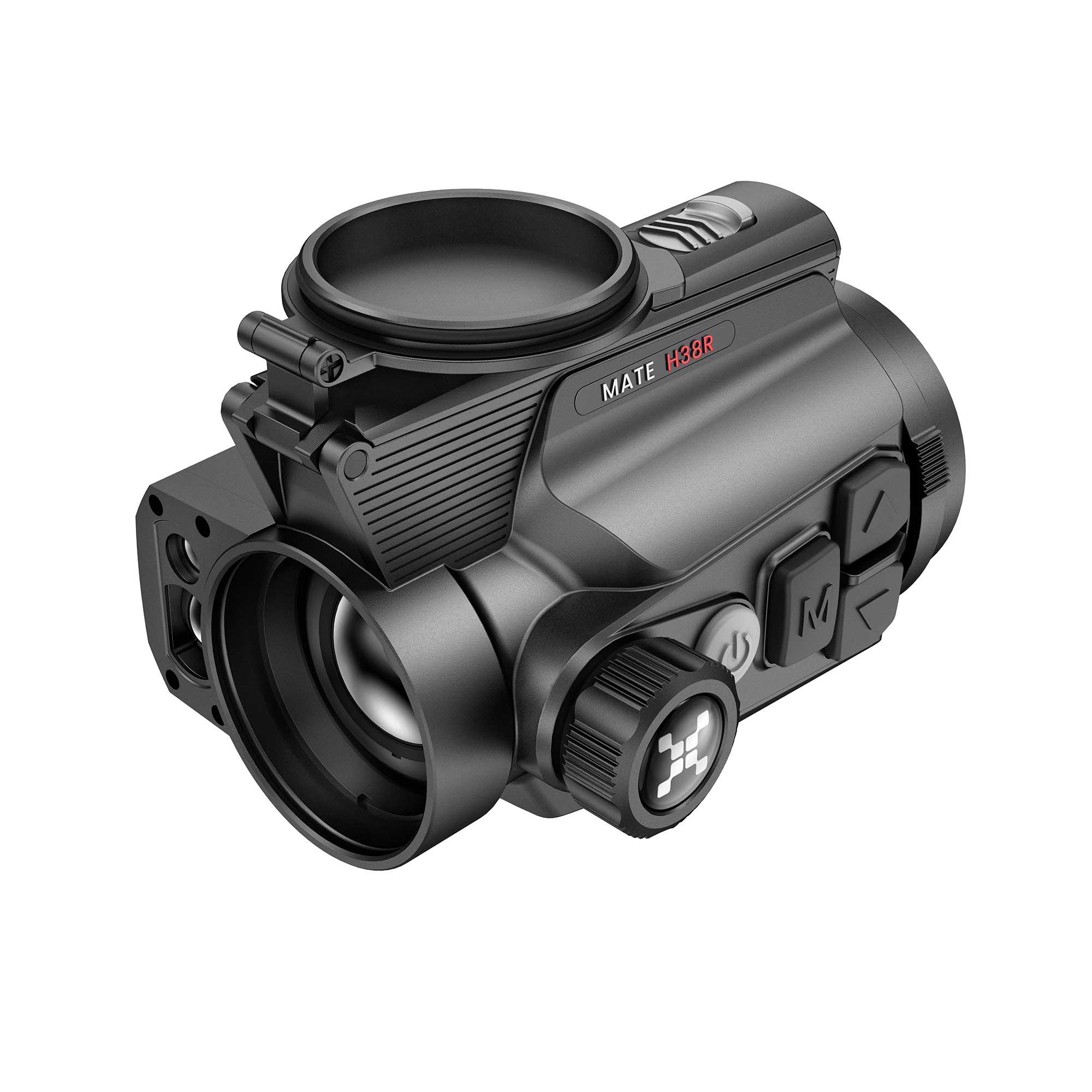

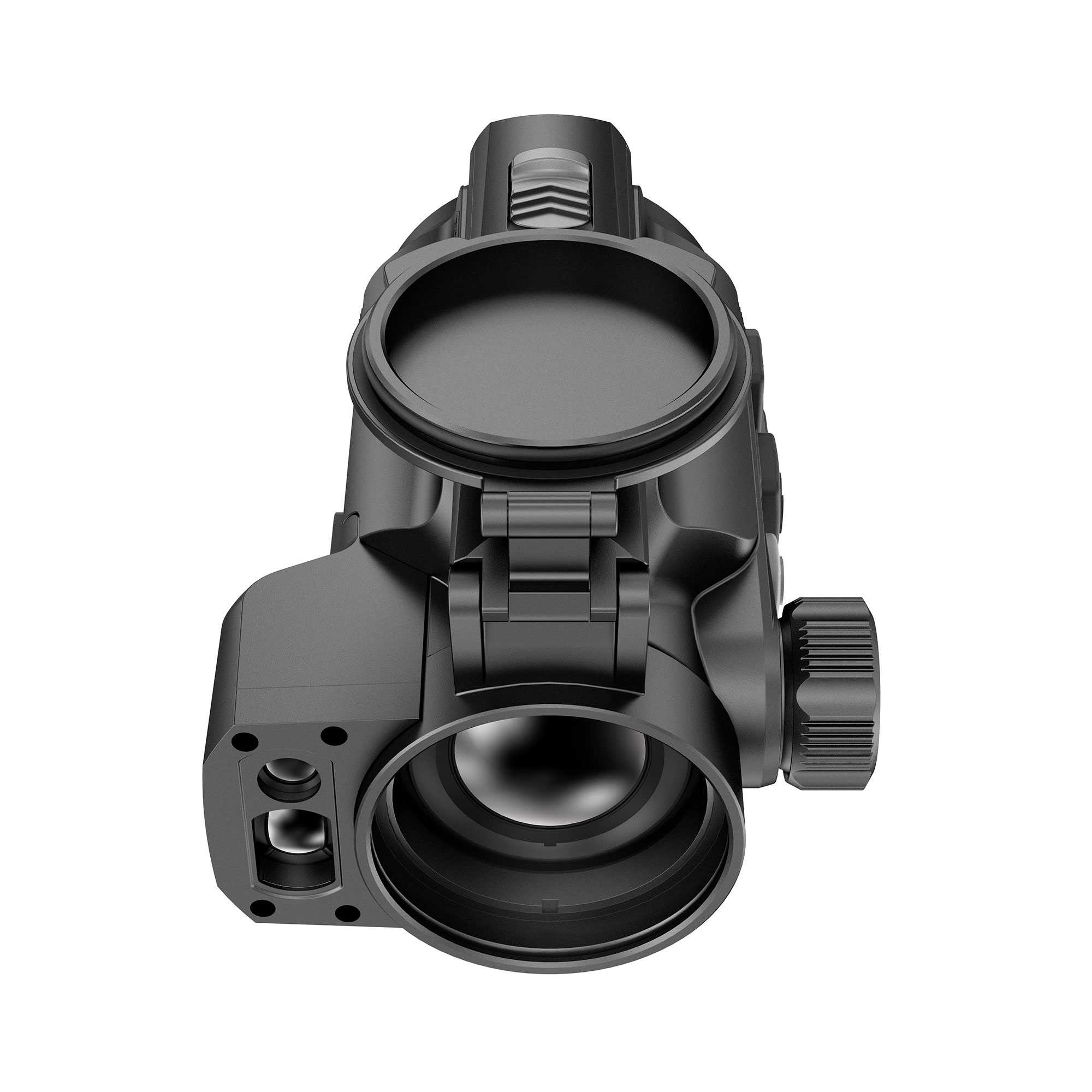

The Nocpix Mate H38R provides thermal imaging in a front attachment designed for compatible daytime optics. It combines a sensitive thermal sensor, integrated laser rangefinder and recording features in a compact unit.
Detailed thermal imaging
A 640 × 512 thermal sensor with 12µm pixels and sensitivity of ≤15mK helps distinguish small temperature differences. The 38mm F1.0 objective lens works alongside a 60Hz refresh rate for smooth viewing.
The field of view covers approximately 20.5 × 15.4 metres at 100 metres. This provides a useful reference when comparing viewing coverage between different thermal attachments.
Detection and distance measurement
The Nocpix Mate H38R has a stated detection range of up to 1,950 metres. Detection means noticing a heat source rather than positively identifying it at that distance. Weather, surroundings and subject size influence the detail available.
Its built-in laser rangefinder measures distances up to 1,200 metres, bringing thermal viewing and distance information together.
AMOLED display and recording
A 1920 × 1080 AMOLED display presents the thermal image. Built-in 64GB storage supports photographs and video recordings, allowing you to retain observations for later review.
Wi-Fi and app support provide connectivity, while the onboard gallery offers access to saved recordings.
Replaceable battery power
The H38R uses a replaceable 18650 battery, with a stated maximum runtime of four hours at 22°C. Actual battery life depends on conditions and use of features such as Wi-Fi and the rangefinder.
Weighing 457g including the battery, the attachment has an IP67 protection rating against dust and water.

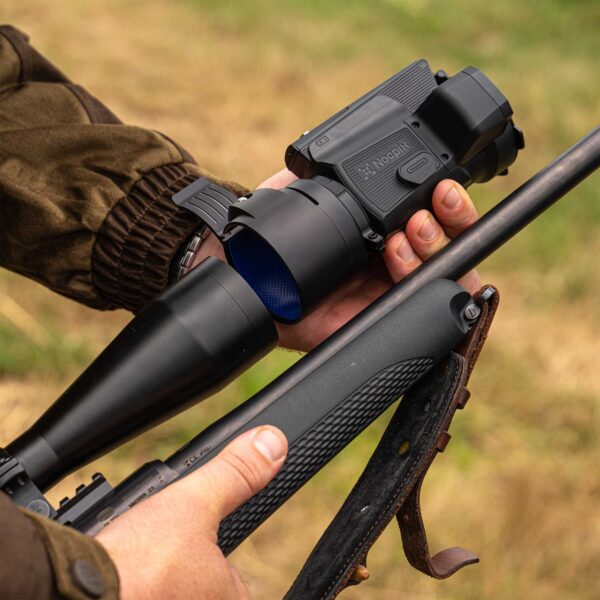

Compatibility before purchase
Choosing a thermal attachment involves more than comparing sensor specifications. Compatibility with your daytime optic and the correct adapter are also important.
Contact Ellmor before ordering if you need help confirming compatibility and the accessories required for your setup.
Visit our Help & Advice centre for product assistance, or consult the Nocpix MATE user manual for manufacturer specifications.
