Description

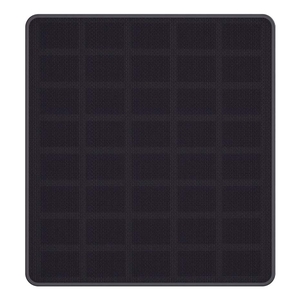

HIKMICRO SP5000 Solar Panel for Trail Cameras

The HIKMICRO SP5000 Solar Panel uses sunlight to support compatible trail cameras, helping reduce reliance on disposable batteries. Its built-in rechargeable battery stores energy for use when sunlight is limited.

It offers a practical power option for wildlife monitoring, especially where regular visits to replace batteries are inconvenient.

Solar charging and battery storage

The SP5000 combines a 5W solar panel with a 5,000mAh, 7.4V lithium-ion battery. Stored energy allows it to provide power beyond periods of direct sunlight.

Available runtime depends on sunlight, panel position, temperature and the camera’s power consumption. Frequent recordings and cellular uploads can increase demand, so the panel should not be treated as a guarantee of continuous operation.

6V and 12V outputs

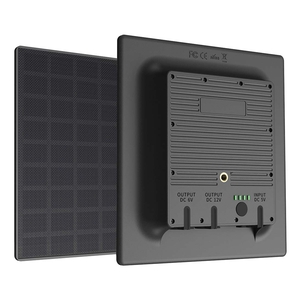

The HIKMICRO SP5000 Solar Panel provides DC outputs rated at 12V/1A and 6V/1.5A. It also has a 5V/2A charging input.

HIKMICRO specifies compatibility with the M15 trail camera. Before connecting another model, confirm its voltage, connector and power requirements. The presence of a 6V or 12V output alone does not establish compatibility with every trail camera.

Outdoor construction

An IP66 protection rating provides resistance to dust and powerful water jets. The panel measures 185 × 170 × 27mm and weighs 450g.

The included mounting bracket offers flexibility when choosing a position with access to sunlight. Consider seasonal shade from trees and vegetation when selecting the location.

Planning your camera setup

Think about both the camera’s view and the panel’s access to daylight. A suitable camera position may be shaded, so check the mounting arrangement and cable reach before placing the equipment.

Explore the HIKMICRO T16 trail camera and contact Ellmor to confirm the correct connection for your setup. Further technical details are available in the official HIKMICRO SP5000 datasheet.
