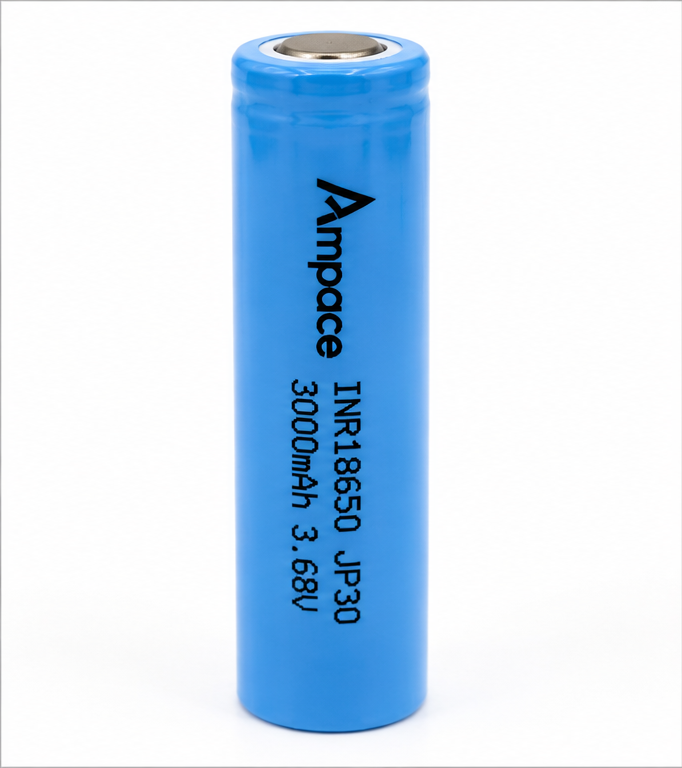

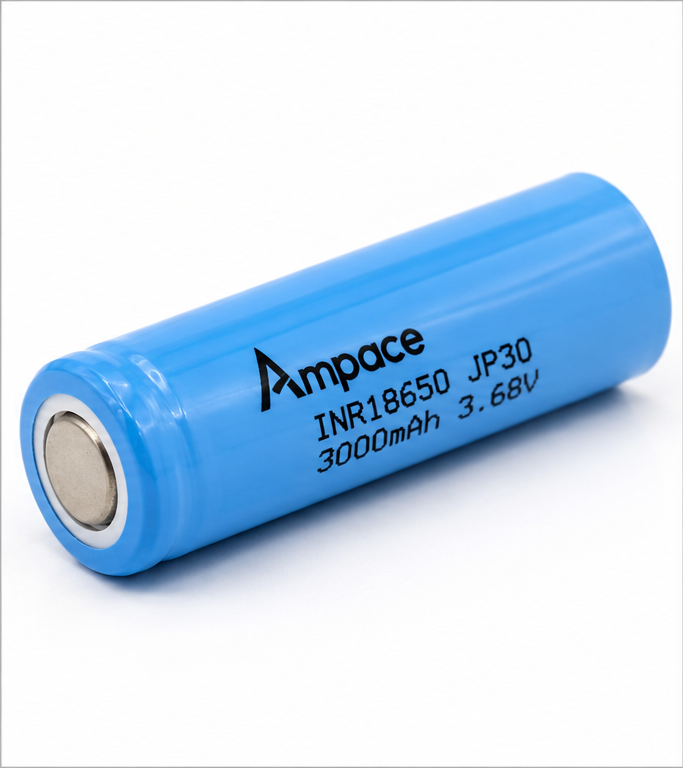

Ampace INR18650 JP30 3000mAh 36A Flat Top Battery

Ampace INR18650 JP30 3000mAh 36A Flat Top Battery

The Ampace INR18650 JP30 is a high-discharge rechargeable lithium-ion battery engineered to combine excellent power delivery with a useful 3000mAh capacity.

Designed for compatible high-drain electronic equipment and battery assemblies incorporating appropriate protection circuitry, the JP30 provides a versatile power source where both current output and energy capacity are important.

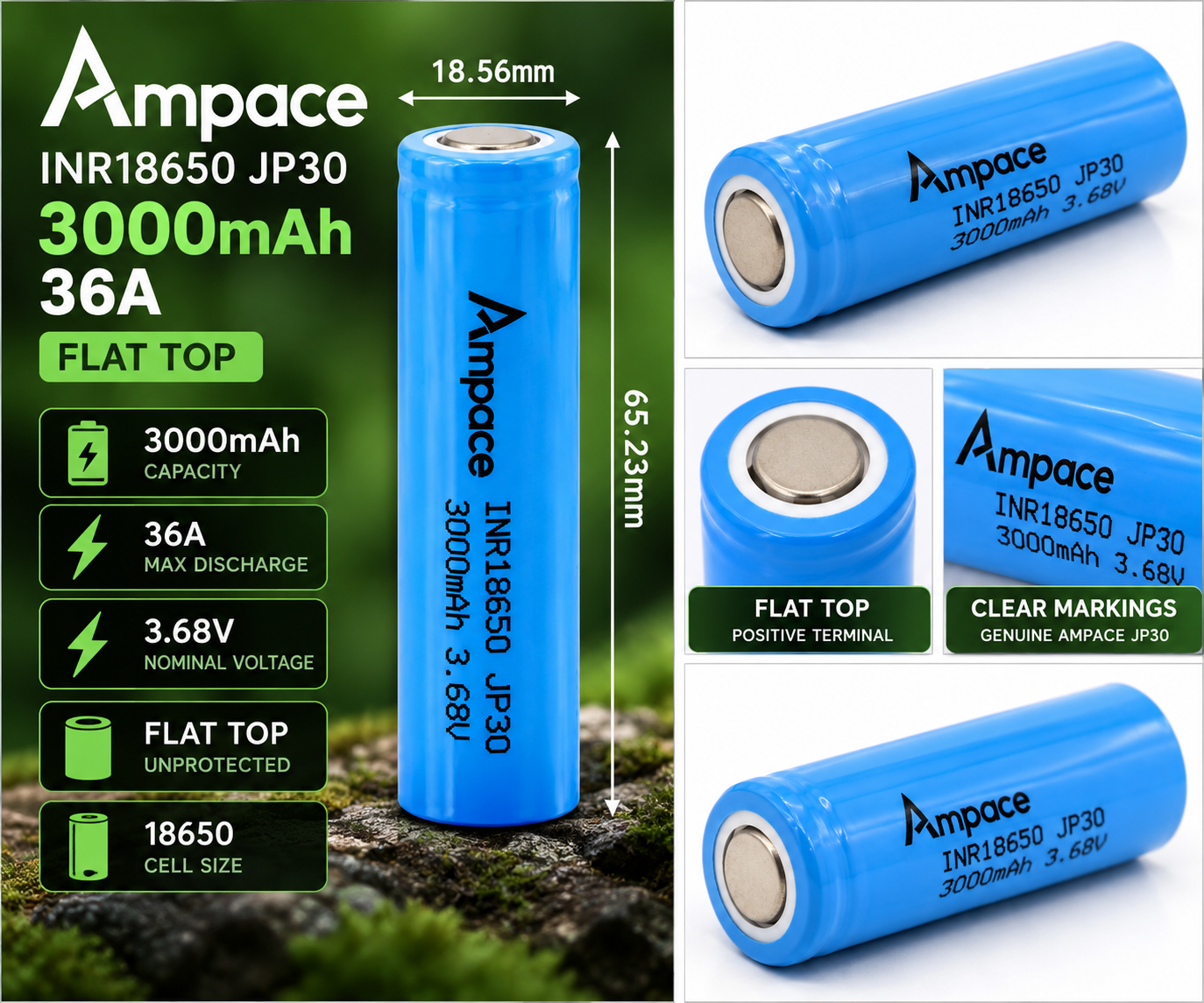

High-Performance 36A Discharge

The Ampace JP30 features a maximum continuous full-discharge current rating of 36A, making it suitable for demanding applications when used within the manufacturer’s electrical and thermal limits.

Its high-current performance distinguishes it from lower-discharge 18650 cells intended primarily for low-power electronics.

3000mAh Rechargeable Capacity

With a typical capacity of 3000mAh and minimum rated capacity of 2900mAh, the Ampace INR18650 JP30 offers a useful balance of stored energy and discharge capability.

Its nominal voltage is 3.68V, with a rated energy capacity of approximately 11.04Wh.

Actual operating time depends on equipment power requirements, temperature and operating conditions.

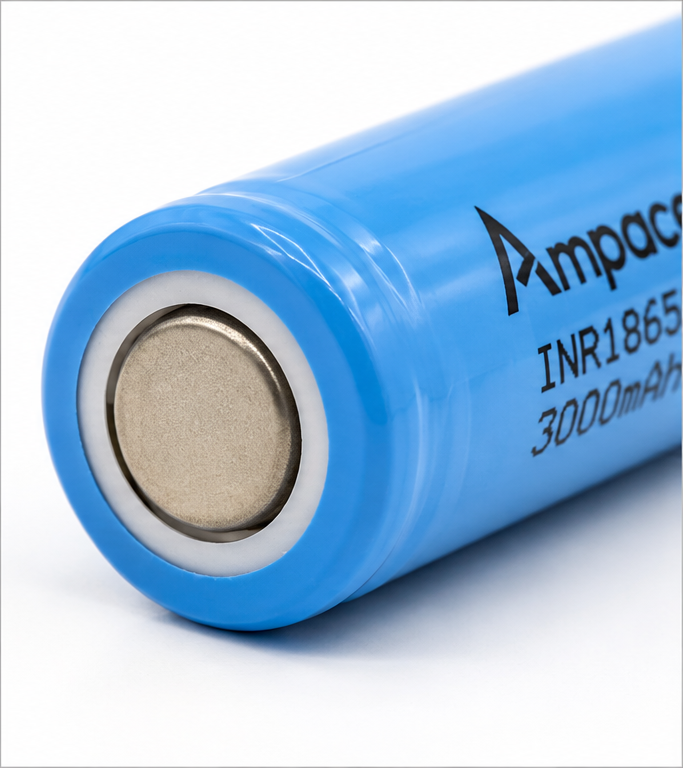

Flat-Top 18650 Construction

This version uses a flat-top positive terminal rather than a raised button-top contact.

Flat-top and button-top batteries are not interchangeable in every device. Customers should check terminal design, dimensions and battery requirements before purchasing.

The cell does not incorporate its own electronic protection circuit.

Technical Specifications

Battery Safety and Compatibility

This is an unprotected industrial-style lithium-ion cell intended for equipment or battery assemblies with suitable battery management and protection.

• Use only a compatible lithium-ion charging system.
• Never short-circuit, crush, puncture or expose the battery to excessive heat.
• Do not use a cell with damaged insulation.
• Do not mix cells of different models, capacities or states of charge.
• Check equipment compatibility before ordering.
• Keep loose cells in suitable insulating storage cases.
