Description

Hotline Shrike HLB100 Battery Electric Fence Energiser

The Hotline Shrike HLB100 Electric Fence Energiser is a compact, lightweight battery-powered energiser designed for small temporary electric fences and short fence lines up to 800 metres.

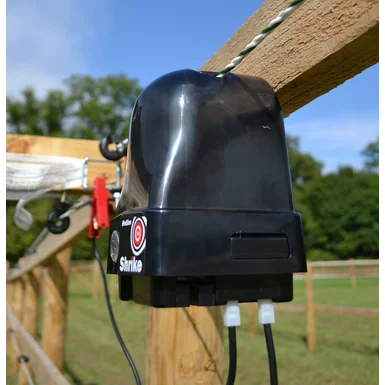

Simple to install and easy to move, the Shrike is ideal where a portable electric fencing solution is required. Its unique hanging case allows the energiser to be conveniently hung from the fence line, fence post or suitable earth stake, making it particularly useful for temporary fencing and frequently moved fence setups.

Powered by two standard D-cell batteries, the Hotline Shrike provides a convenient solution in locations where mains electricity is unavailable. It can also be operated from an external 12V battery using the appropriate optional connection lead, giving you additional flexibility.

Compact Battery Electric Fence Energiser

The Shrike has been designed as a simple and portable electric fence energiser for smaller fencing applications.

With a 0.04 joule stored energy and 0.03 joule maximum output, it is intended for short, relatively simple electric fence lines rather than large permanent fencing systems or electric netting.

A built-in pulse indicator provides a quick visual indication that the energiser is operating, while the straightforward on/off switch makes operation simple.

Key Features

• Compact Hotline electric fence energiser
• Suitable for small temporary electric fencing
• Maximum fence distance up to 800m
• Powered by 2 x D-cell batteries
• D-cell batteries included
• Optional 12V external battery operation
• 0.04 joule stored energy
• 0.03 joule maximum output
• Maximum voltage up to 9.5kV
• Low 18mA power consumption
• Built-in pulse indicator
• Convenient on/off switch
• Unique hanging case

Can hang from a fence line, post or suitable earth stake

Compatible with the optional Shrike solar-assist panel

Made in the UK

5-year manufacturer’s warranty

Ideal for Small & Temporary Electric Fences

The Hotline Shrike is particularly suited to applications where only a relatively short electric fence needs to be powered.

Its compact size and battery operation make it easy to relocate when the fence layout changes, while the hanging design means a separate energiser stand is not normally required.

For larger fence systems, electric netting or more demanding applications, a higher-powered Hotline energiser should be considered.

Battery Powered with 12V Option

As standard, the Shrike operates from two D-cell batteries housed inside the unit.

For applications where longer-term external battery power is preferred, the energiser can also be connected to a 12V battery using the optional Hotline Shrike 12V battery lead.

The Shrike is also compatible with a 2.5W solar-assist panel, which can help extend battery life in suitable conditions.

Technical Specification

Model: Hotline Shrike HLB100
Part Number: 47HLB100
Power Supply: 3V – 2 x D-cell batteries
External Power Option: 12V battery with optional connection lead
Stored Energy: 0.04J
Maximum Output Energy: 0.03J
Maximum Voltage: 9.5kV
Voltage at 500 Ohms: 0.58kV
Power Consumption: 18mA
Maximum Fence Distance: 0.8km / 800m
Pulse Indicator: Yes
On/Off Switch: Yes
Solar Assist Compatible: Yes – optional 2.5W panel
Country of Manufacture: UK
Manufacturer’s Warranty: 5 years

Hotline Electric Fencing from Ellmor

The Hotline Shrike HLB100 is a practical choice when you need a simple, portable battery electric fence energiser for a short fence line.

Browse Ellmor’s wider range of electric fencing equipment, energisers, fencing wire, posts, insulators, earth stakes and accessories to build or maintain your electric fencing system.
