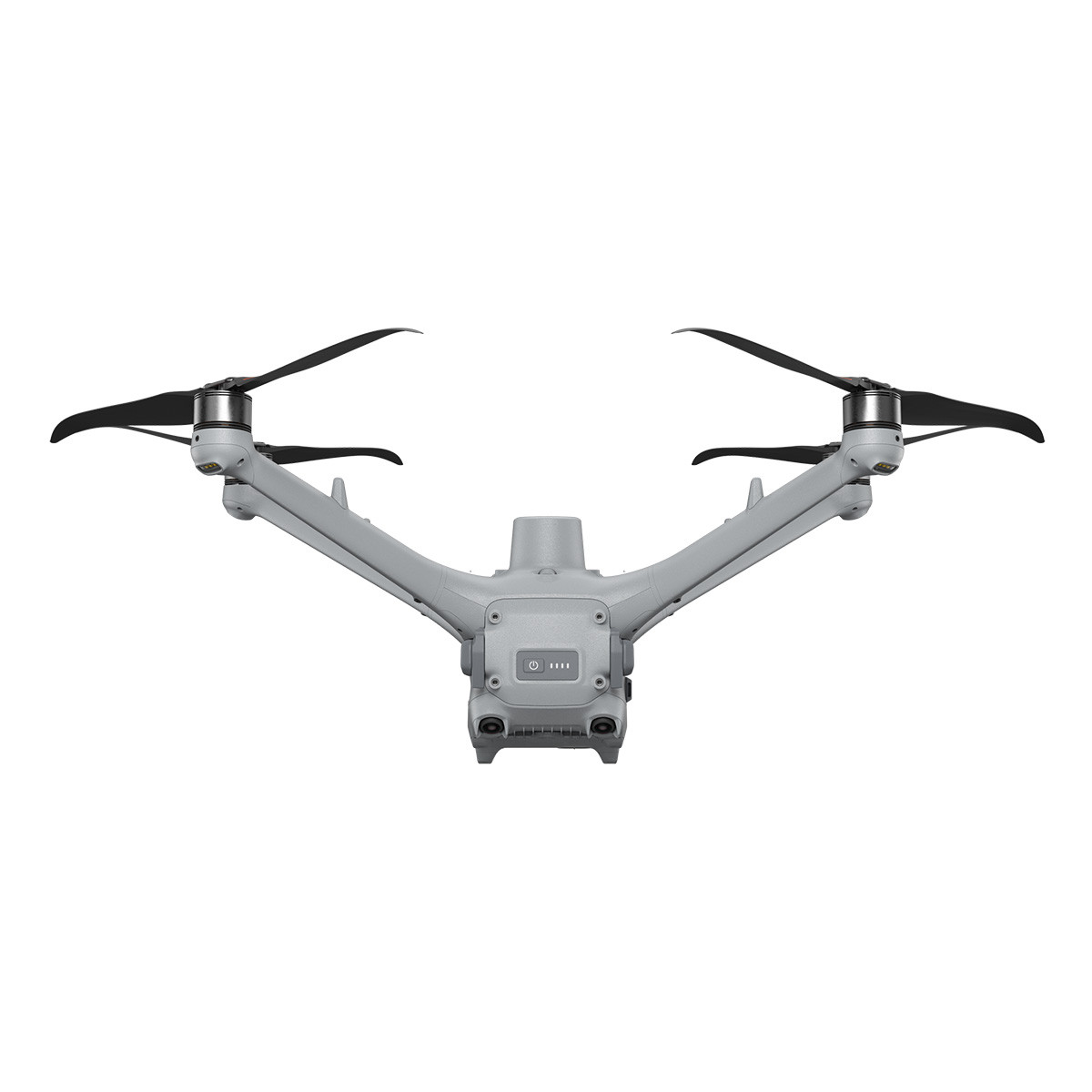

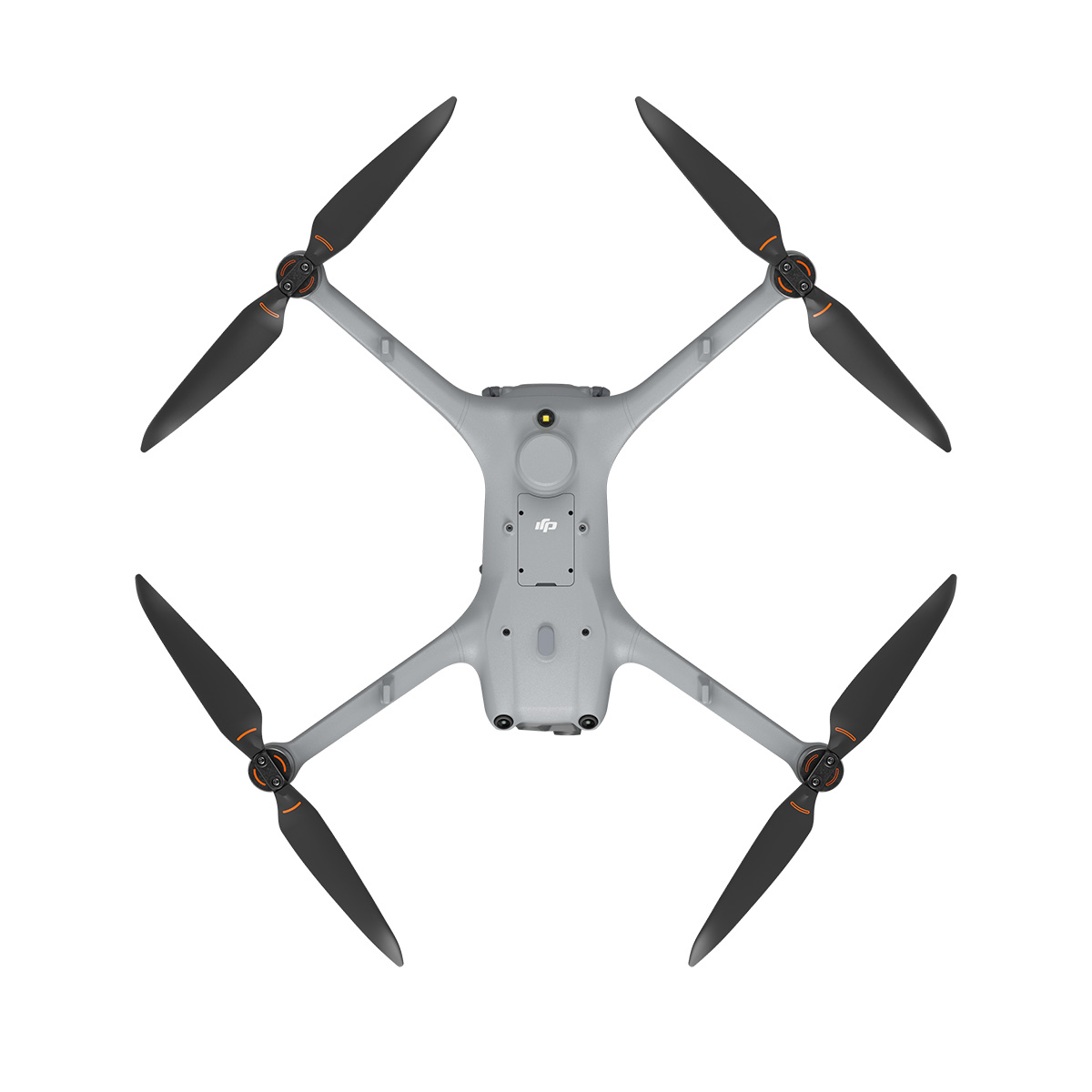

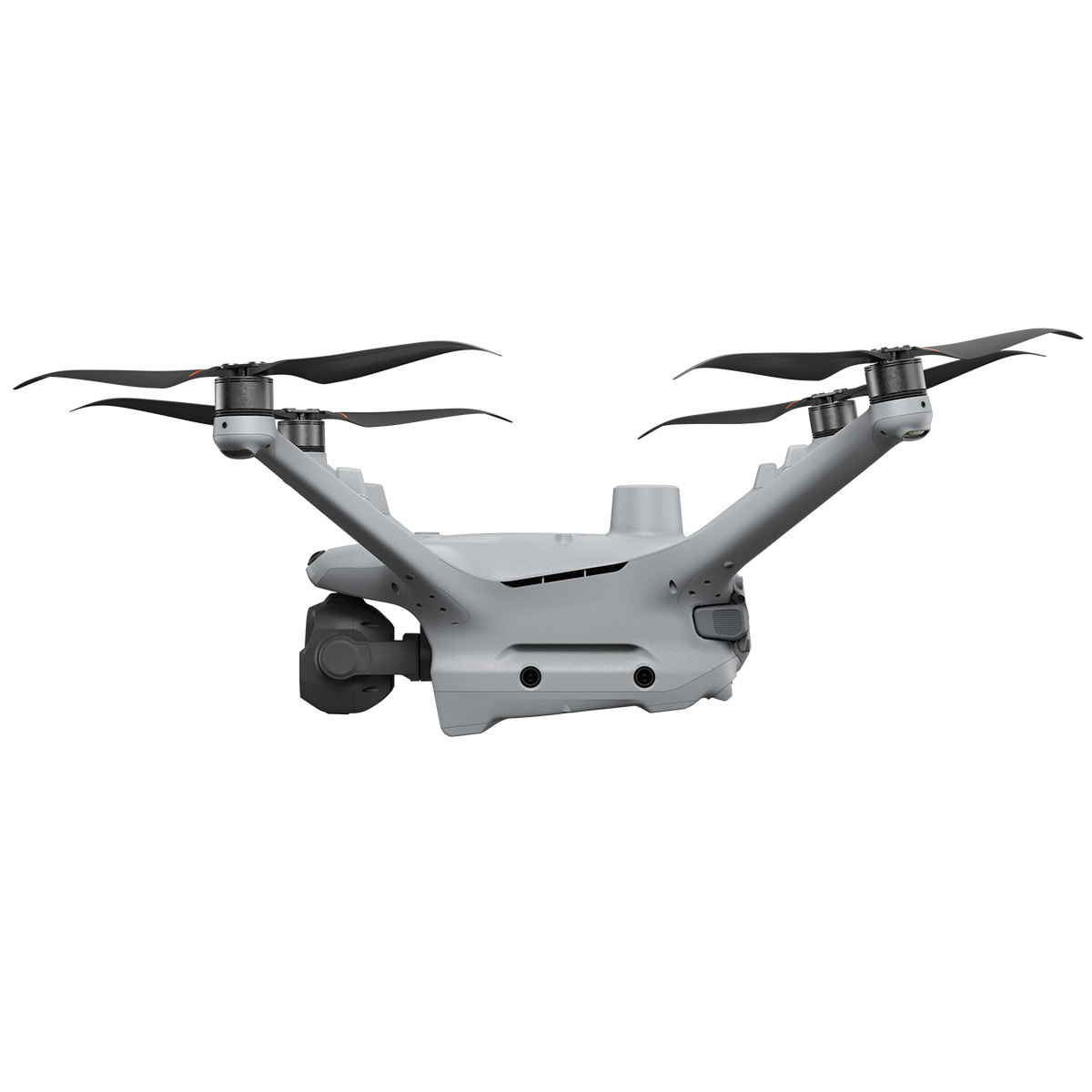

DJI Matrice 4TD Thermal Drone – Options

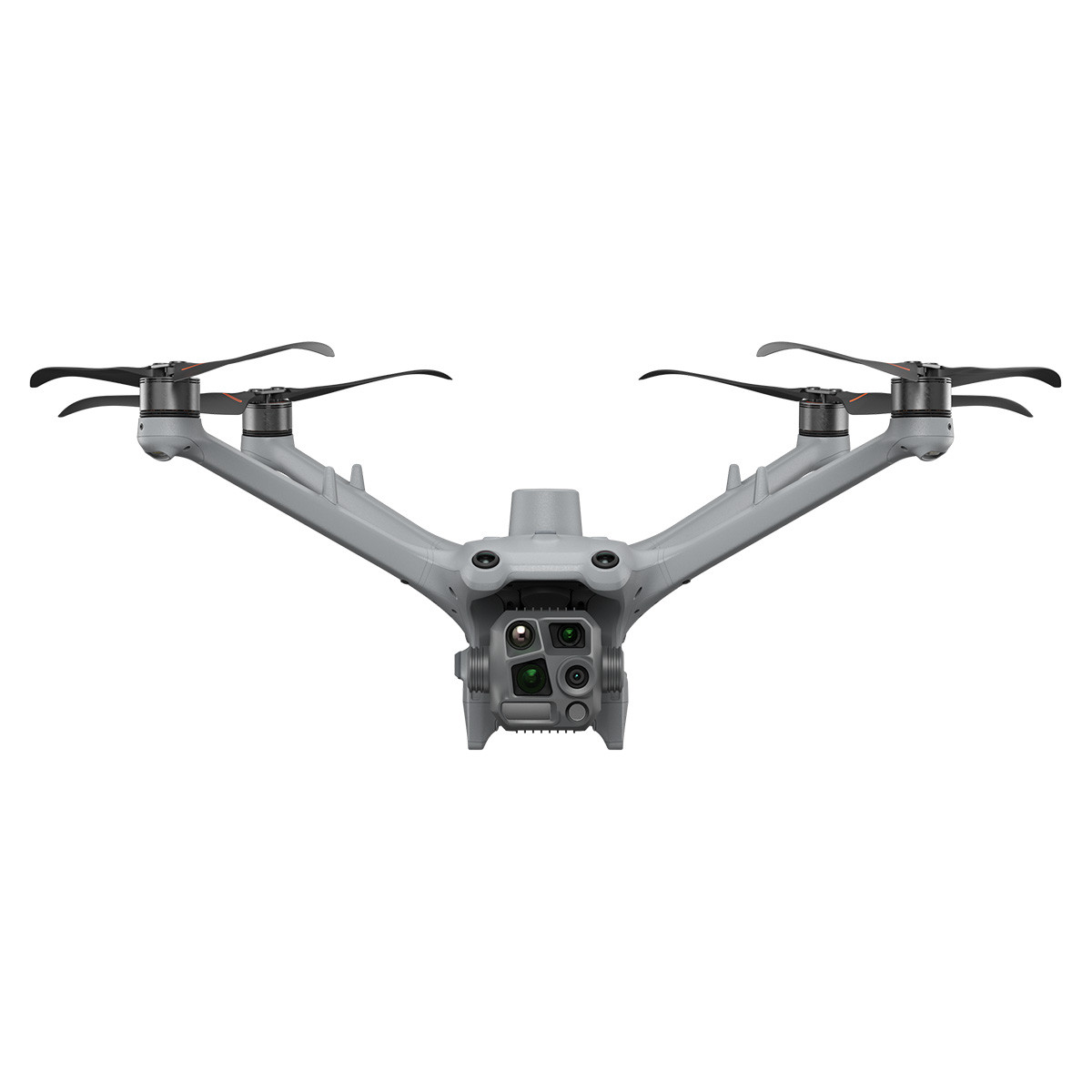

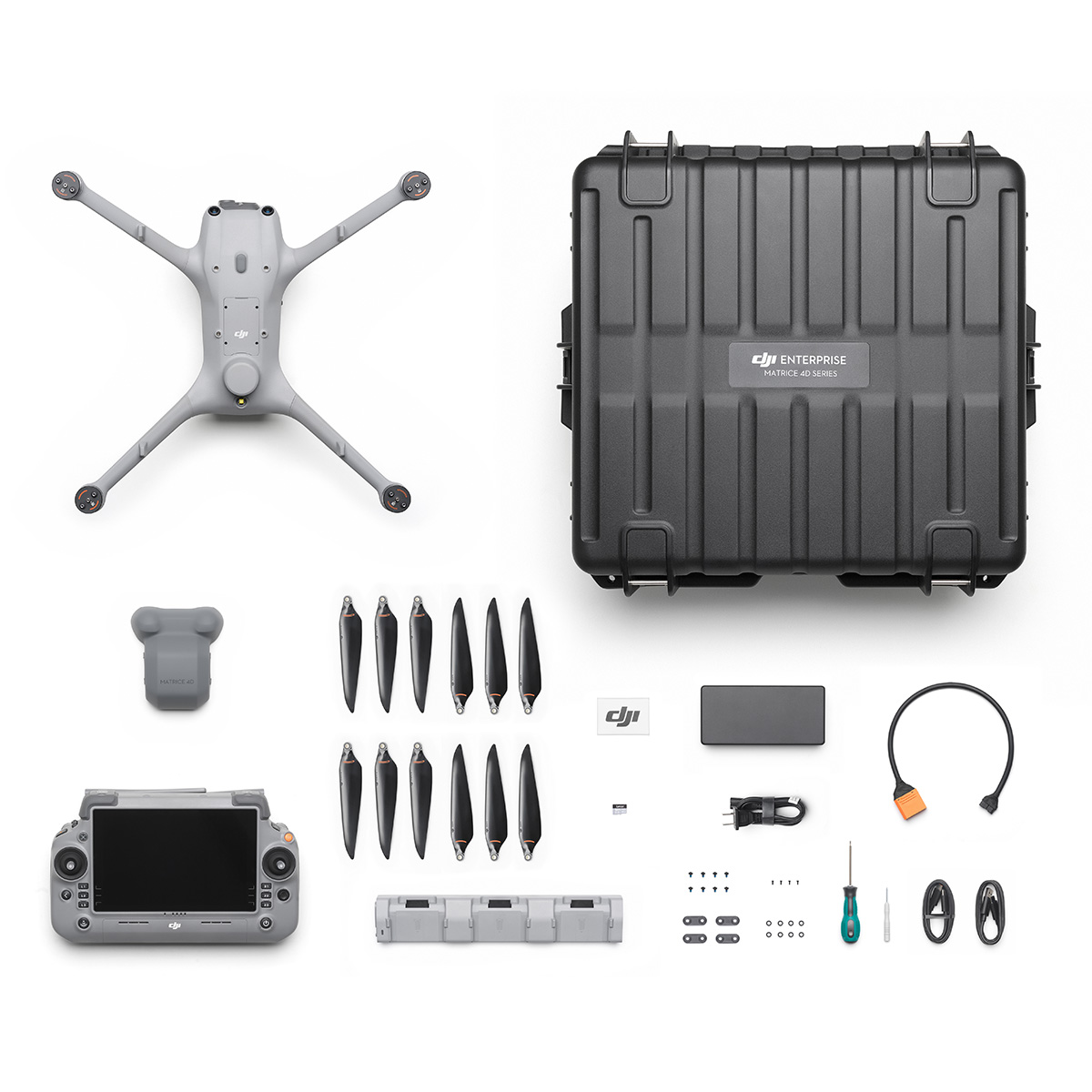

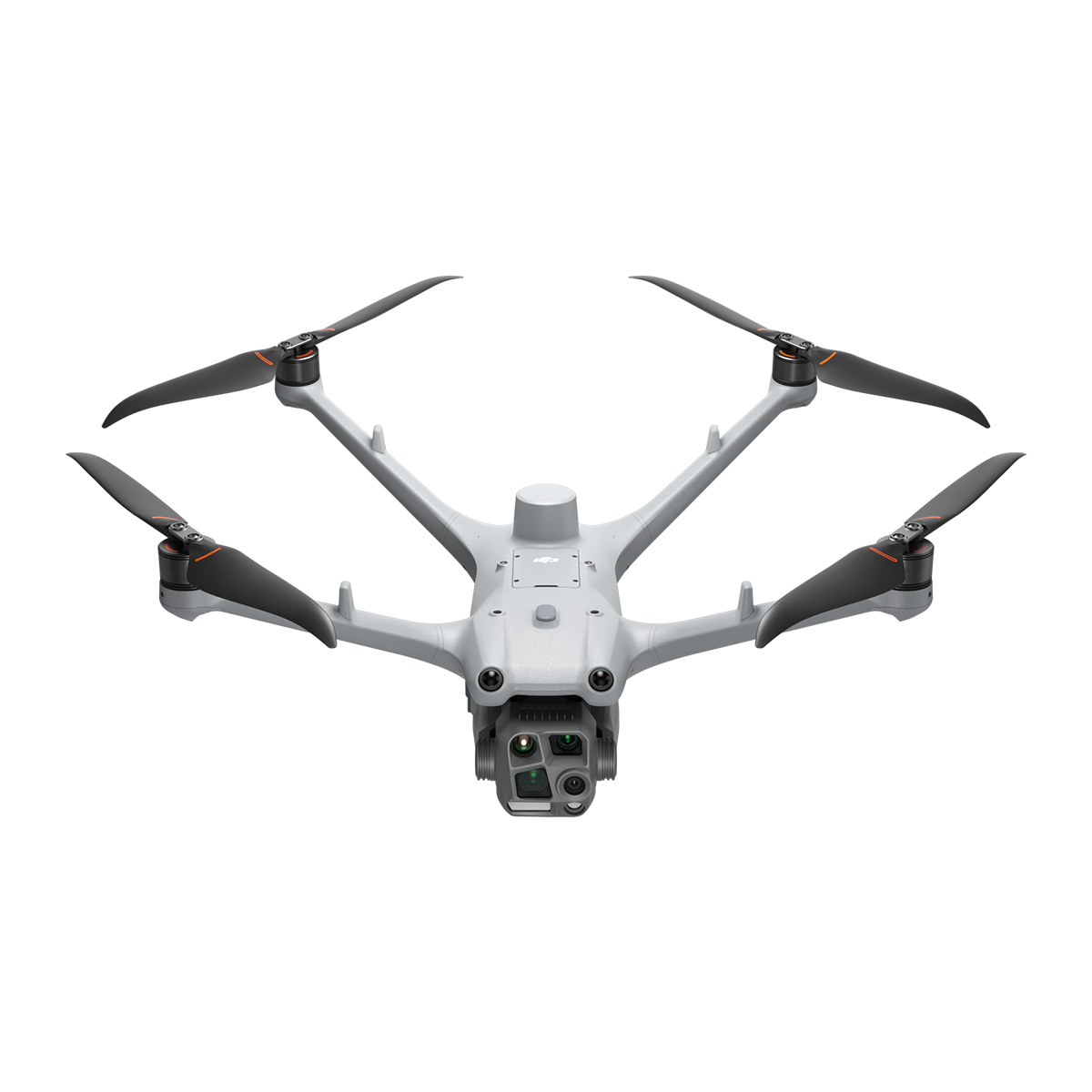

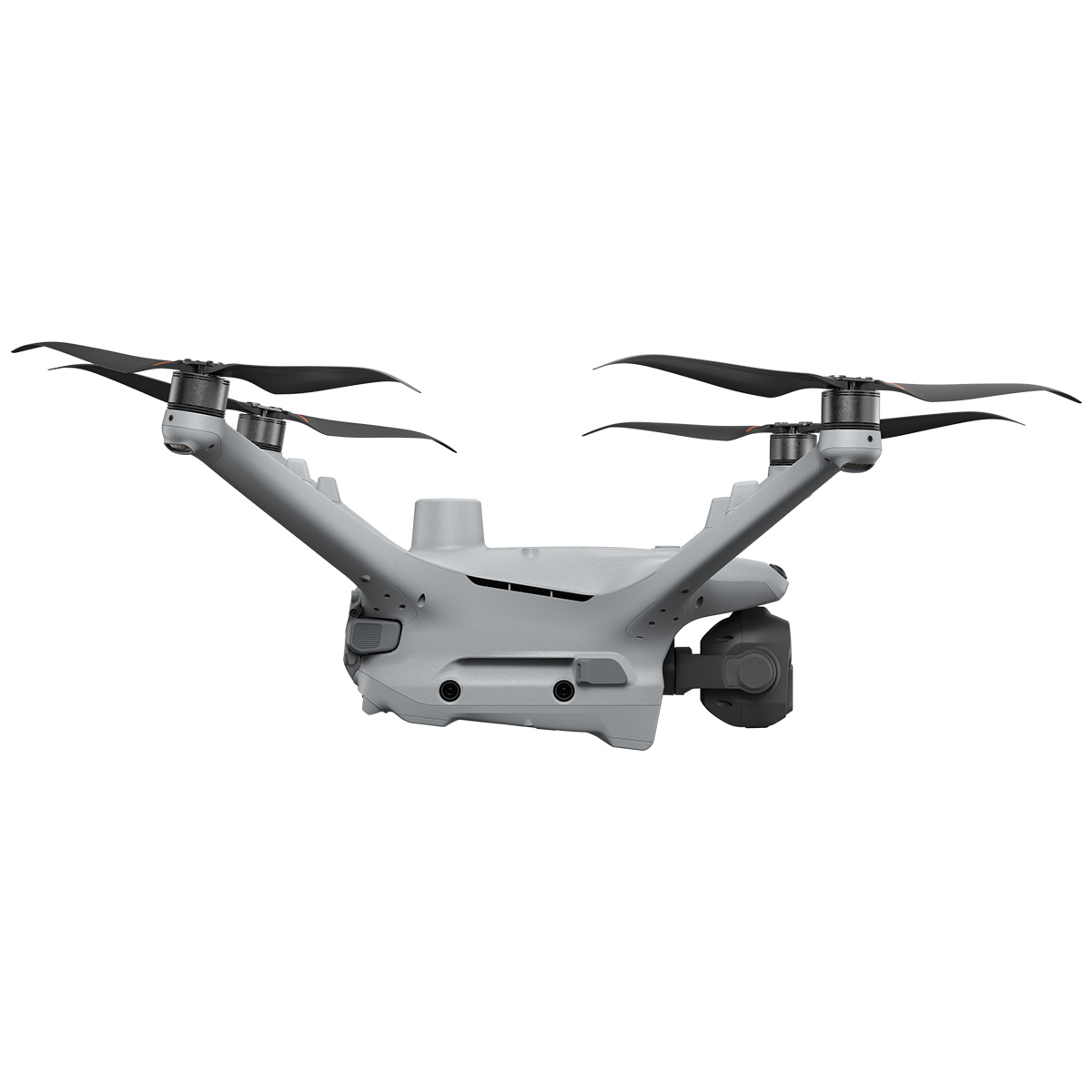

The DJI Matrice 4TD is a high-performance, IP55 rated enterprise drone designed for to be paired with the new Dock 3. This package excludes the Dock 3 and a battery. Its six-module payload includes a wide-angle camera, 3x and 7x optical zoom lenses, a thermal sensor, NIR auxiliary light, and a laser rangefinder. Its robust design ensures it operates in more demanding weather conditions, including rain, low light, and extreme temperatures. This resilience makes the Matrice 4TD especially suitable for operations in harsh environments, where thermal detection is critical for identifying heat sources, finding people, or conducting damage assessments in disaster zones.

Equipped with a high-resolution thermal camera, the Matrice 4TD detects heat signatures in darkness or obscured conditions. Its advanced NIR illumination enhances visibility, making it ideal for search and rescue, night surveillance, and infrastructure monitoring. This ensures critical data collection in low-light environments.

Its AI-powered recognition and advanced navigation enhance safety and efficiency. The drone automatically detects and tracks people, vehicles, and ships, with support for custom object detection. GNSS+Vision positioning, automatic obstacle detection, and five-directional vision assist ensure precise, secure flights, even in complex scenarios.

The Matrice 4TD is a game-changer for wildlife management, search and rescue, and surveying. It helps conservationists monitor wildlife, assists in finding missing persons with thermal imaging, and enables accurate 3D mapping for environmental and infrastructure analysis. Its real-time data capabilities improve decision-making and operational success across industries.

• Weight1850 g
• Max Takeoff Weight (Standard Propellers)2090 g
• Dimensions377.7×416.2×212.5 mm (L×W×H)
• Diagonal Wheelbase438.8 mm
• Front Motor Left-Right Wheelbase383.0 mm
• Rear Motor Left-Right Wheelbase343.0 mm
• Front-Rear Wheelbase341.6 mm
• Max Ascent Speed ( Normal Mode)6 m/s
• Max Ascent Speed ( Sport Mode)10 m/s
• Max Descent Speed ( Normal Mode)6 m/s
• Max Descent Speed ( Sport Mode)8 m/s
• Max Wind Speed Resistance12 m/s
• Max Flight Time54 minutes
• Max Operating Radius10 km
• Max Flight Distance43 km
• Max Pitch Angle (Normal Mode)25°
• Max Pitch Angle (Sport Mode)30°
• Max Angular Velocity200°/s
• Operating Temperature-20° to 50° C
• Ingress Protection RatingIP55
• Motor Model2611
• Propeller Model1364F foldable low-noise anti-ice propellers
• RTK ModelIntegrated on the aircraft
• BeaconIntegrated on the aircraft
• Wide (Camera Sensor)1/1.3-inch CMOS, Effective Pixels
• Medium Tele (Camera Sensor)1/1.3-inch CMOS, Effective Pixels
• Telephoto (Camera Sensor)1/1.5-inch CMOS, Effective Pixels
• Lens FOV82°
• Lens Equivalent Focal Length24 mm
• Lens Aperturef/1.7
• Lens Focus1 m to ∞
• ISO Range (Normal Mode)ISO 100 to ISO 25600
• Wide Camera (Night Scene Mode)ISO 100 to ISO 409600
• Midum Tele Camera (Night Scene Mode)ISO 100 to ISO 409600
• Tele Camera (Night Scene Mode)ISO 100 to ISO 819200
• Shutter Speed2-1/8000 s
• Max Photo Size Wide8064 × 6048
• Max Photo Size Medium Telephoto8064 × 6048
• Max Photo Size Telephoto8192 × 6144
• Video Coding FormatH.264/H.265
• Coding StrategyCBR, VBR
• Resolution 4K3840 × 2160@30fps
• Resolution FHD1920 × 1080@30fps
• Supported File SystemexFAT
• Video FormatMP4 (MPEG-4 AVC/H.264)
• Digital Zoom Telephoto16x (112x hybrid zoom)
• Infrared IlluminationFOV
• Laser Rangefinding Range1800 m (1 Hz) @20% reflectivity target
• Thermal Camera ResolutionDJI Matrice 4T
• Thermal Camera Pixel Pitch12 μm
• Thermal Camera Frame Rate30 Hz
• Thermal Camera Sensitivity≤50mk@F1.0
• Thermal PaletteWhite Hot/Black Hot/Tint/Iron Red/Hot Iron/Arctic/Medical/Fulgurite/Rainbow 1/Rainbow 2
• Thermal Digital Zoom28x
• Infrared Wavelength8um to 14um
• Supported SD CardsU3/Class10/V30
